Metallurgical Grade (MG)
Choose the correct "MG" for your product
Type Application
MG1 Good for deep drawing (drawing ratio >= 1.8 - 2.0)
MG2 Good for Spinning
MG3
Suitable for the following applications
  • Deep drawing (drawing ratio < 1.8)
  • Bending
  • Coated Products
  • Hard Anodising
  • Enamelling
  • No special surface treatment
  • Etching
  • Polishing
MGL1 Hydroforming/Deep Drawing for Lighting Applications
MGL2 Automatic/Mechancial Spinning for Lighting Applications
Surface Grade (SG)
Choose the correct "SG" for your product
Type Application Scratch Tolerance
SG1 Clear anodising
No mechanical treatment is applied on the aluminium surface		 Scratch Free
SG2 Hard anodising
Light polishing		 Visual scratch is tolerable
Hair line scratch is tolerable
SG3 Coated products
Polished
Mechanical polished
Sand blasted
Spinning		 Visual scratch is tolerable
Hair line scratch is tolerable
Light scratch is tolerable
SGL211 Downlighting with very light Mechanical Polishing
SGL300 Downlighting requiring high clarity with normal Mechanical Polishing
SGL311 Downlighting with normal Mechanical Polishing
SGL322 High Bay/Street Light
  • Features & Specifications

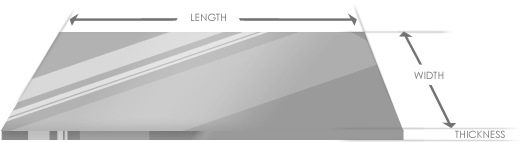

  • Dimensions
Product Features
  • Excellent flatness control to the product
  • Paper interleave / PE coated for good surface protection
  • Excellent anodizing quality
  • Well-Protected Packing
Characteristic of Alloy
Alloy Series Main Application
Alloy
Characteristics of Alloy		 Temper
1000 Series
Cookware & Electrical Applianes :
Anodizing, Polishing, Non-stick Cookware, Rice Cookers, Coffee Pots, Fat Fryers
Lighting Reflectors :
Down Lights, High Bay Lights, Street Lights
Construction :
Curtain Walls, Ceilings
  • 1050
    Excellent forming and anodizing
  • 1070
    Good reflectivity
  • 1080
    Better reflectivity than 1070
  • 1085
    Better reflectivity than 1080
  • 1090
    Excellent reflectivity
  • 1100
    Excellent forming and anodizing
  • 1200
    Excellent forming and anodizing
 0
3000 Series
Cookware & Electrical Applianes :
Hard anodizing, Enameling, Polishing, Non-stick Cookware, Rice Cookers, Coffee Pots, Fat Fryers
Lighting Reflectors :
Down Lights, High Bay Lights, Street Lights
Construction :
Curtain Walls, Ceilings
  • 3002
    Good reflectivity and light diffusion
  • 3003
    Excellent forming, hard anodizing and enameling
  • 3004
    Higher strength than 3003
  • 3103
    Excellent forming, hard anodizing and enameling
  • 3105
    Higher strength than 3003
 H12

H14

H16

H18
4000 Series
Cookware :
Enameling, Non-stick Cookware
  • 4006
    Excellent enameling and good strength
 H22
6000 Series
Automobile :
Car Wheels, Parts
  • 6061
    Excellent strength
 H24
8000 Series
Cookware :
Non-stick Cookware
  • 8128
    Good forming, fine grains and no looper lines
 H26
9000 Series
Cookware :
Pearl Colour Anodizing Cookware
  • 9000
    Excellent pearl colour anodizing

All data in Imperial System (in.)
All data in Metric System (mm.)
Product Range
ALLOY THICKNESS MAX. WIDTH MAX. LENGTH TEMPER
1000 Series
(1050, 1070, 1080, 1085, 1090, 1100, 1200)

.012 - .236

 53 / 60 144

O
H12
H14
H16
H18
H22
H24
H26
3000 Series
(3002, 3003, 3004, 3103, 3105)		 .012 - .157
4000 Series
(4006)		 .012 - .236
6000 Series
(6061, 6120)		 .063 - .236
8000 Series
(8128)		 .012 - .236
9000 Series
(9000)		 .012 - .236
* Please enquire if you are interested in products outside the above ranges.
Width-Length Tolerances
Sheet Width Tolerance
Thickness Width Range
  <=5.91 5.91-12.01 12.02 - 24.02 24.03 - 48
.012 - .125 +/- .020 +/- .020 +/- .031 +/- .047
.126 - .185 +/- .020 +/- .031 +/- .031 +/- .063
.186 - .256 +/- .040 +/- .060 +/- .060 +/- .071
.267 - .354 +/- .079 +/- .118 +/- .118 +/- .157
*The maximun dimension may vary according to individual specifications
Sheet Length Tolerance
Thickness Width Range
  <=30 30 - 60 60 - 120
.012 - .124 +/- .063 +/- .094 +/- .125
.125 - .256 +/- .079 +/- .098 +/- .125
.257 - .354 +/- .157 +/- .177 +/- .197
*The maximun dimension may vary according to individual specifications
Thickness Tolerances
Thickness Tolerance
.012 - .028 +/- .0012
.029 - .040 +/- .0020
.041 - .072 +/- .0024
.073 - .104 +/- .0031
.105 - .128 +/- .0043
.129 - .157 +/- .0055
.158 - .256 +/- .0071
.257 - .315 +/- .0087
.316 - .350 +/- .0098
*The maximun dimension may vary according to individual specifications
Product Range
ALLOY THICKNESS MAX. WIDTH MAX. LENGTH TEMPER
1000 Series
(1050, 1070, 1080, 1085, 1090, 1100, 1200)

0.30 - 6.00

 1,347 / 1,500 3,658

O
H12
H14
H16
H18
H22
H24
H26
3000 Series
(3002, 3003, 3004, 3103, 3105)		 0.30 - 4.00
4000 Series
(4006)		 0.30 - 6.00
6000 Series
(6061, 6120)		 1.60 - 6.00
8000 Series
(8128)		 0.30 - 6.00
9000 Series
(9000)		 0.30 - 6.00
* Please enquire if you are interested in products outside the above ranges.
Width-Length Tolerances
Sheet Width Tolerance
Thickness Width Range
  <=150 151 - 305 306 - 610 611 - 1220
0.30 - 3.18 +/- 0.50 +/- 0.50 +/- 0.79 +/- 1.19
3.19 - 4.72 +/- 0.50 +/- 0.79 +/- 0.79 +/- 1.60
4.73 - 6.50 +/- 1.00 +/- 1.50 +/- 1.50 +/- 1.80
6.51 - 8.99 +/- 2.00 +/- 3.00 +/- 3.00 +/- 4.00
*The maximun dimension may vary according to individual specifications
Sheet Length Tolerance
Thickness Width Range
  <=762 763 - 1524 1525 - 3048
0.30 - 3.15 +/- 1.60 +/- 2.39 +/- 3.18
3.16 - 6.50 +/- 2.00 +/- 2.50 +/- 3.18
6.51 - 8.99 +/- 4.00 +/- 4.50 +/- 5.00
*The maximun dimension may vary according to individual specifications
Thickness Tolerances
Thickness Tolerance
0.30 - 0.71 +/- 0.03
0.72 - 1.02 +/- 0.05
1.03 - 1.83 +/- 0.06
1.84 - 2.64 +/- 0.08
2.65 - 3.25 +/- 0.11
3.26 - 4.00 +/- 0.14
4.01 - 6.50 +/- 0.18
6.51 - 8.00 +/- 0.22
8.01 - 8.99 +/- 0.25
*The maximun dimension may vary according to individual specifications
